Introducing the OG V2: All-Wheel Drive E-Bike with Dual Batteries

Are you ready to redefine your outdoor experiences? Say hello to the future of biking with the OG, our cutting-edge, all-wheel-drive electric bike equipped with dual batteries for unmatched power and performance!

Dual Battery Power

With not just one, but two high-capacity batteries, made with Samsung cells. The OG ensures you'll never run out of juice on your adventures. Enjoy the freedom to explore farther and faster, with a combined range of 110+ miles (PAS) on a single charge!

All-Wheel Drive Technology

Conquer any terrain with ease thanks to our advanced all-wheel-drive system powered by dual 1000W Bafang motors. Whether you're navigating steep hills, rugged trails, or urban streets, the OG V2 provides unbeatable traction, stability, and control.

Powerful Performance

Experience exhilarating acceleration and smooth, seamless power delivery with state-of-the-art electric motors. Climb hills effortlessly and cruise at impressive speeds, all while enjoying a whisper-quiet ride.

Adventure-Ready Design

Built to withstand the rigors of the great outdoors, the OG V2 features a rugged yet lightweight frame made with aluminum alloy 6061 and premium components for durability and reliability. The OG V2 comes with Huntsman Vee all terrain tires, DNM adjustable rear shock, and weather sealed control buttons.  But that's not all we've also updated the computer/display with lots of customizable options so you'll have all your ride data front and center.

• All wheel drive - with option to run front or rear only or both.
• Dual 1000W (1850W peak/3700W combined peak) Geared Hub BAFANG Brushless Motor
• Up to 110 miles (depending on mode) of Range per Charge
• Use Pedal Assist and/or Twist Throttle
• 52v, 20ah and 52v 15ah dual batteries Samsung cells
• Tektro Hydraulic Brakes(Class-Leading stopping force)
• Aluminum Alloy 6061 Frame
• Shimano 7 Speed Trigger Rapid Shifter Drivetrain
• Large Platform Forged Aluminum Pedals
• Knobby All-Terrain Fat Tires (20" x 4")
• Stainless Steel Spokes
• Maximum Load (including rider): 300lbs
• Beautiful Display w/ 7 level Electronic Pedal Assist System
• USB Phone Charging Port on Display and Down Tube Battery
• AC  1A/2A Charger

Every Vulcan e-bike comes with a 1 year limited warranty that protects the original owner from any manufacturing defects.

**For offroad/private land use only in CA

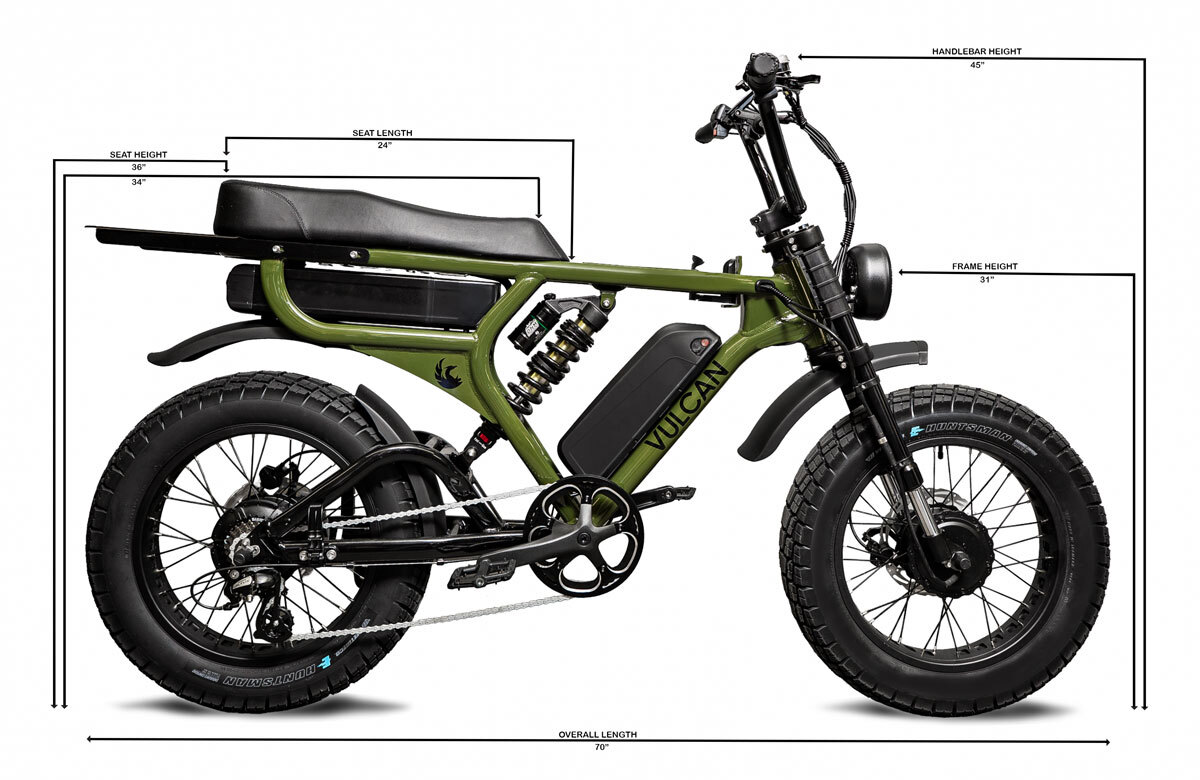

DIMENSIONS

+

-

Weight: 109 lbs
Overall Length: 70”

Frame Height:31"
Saddle Height: 34”
Handlebar Height: 45”
Handlebar Span: 25.75”
Weight Limit: 300 lbs

PERFORMANCE

+

-

Range: Up to 110 miles (depending on mode and pedaling)
Max Speed: Default Class 2 - 20MPH/ Off-Road Mode - 36 MPH
Front Hub Motor: 1000W (1850W Peak) Bafang Brushless

Rear Hub Motor: 1000W (1850W Peak) Bafang Brushless

Dual Battery System: 1820wh (52v, 20ah and 15ah Lithium Samsung/LG cells)

Throttle: Half twist throttle with isolator

Pedal Assist: Multi-level , cadence pedal assist
Drive-Train: 7-speed Shimano Derailleur

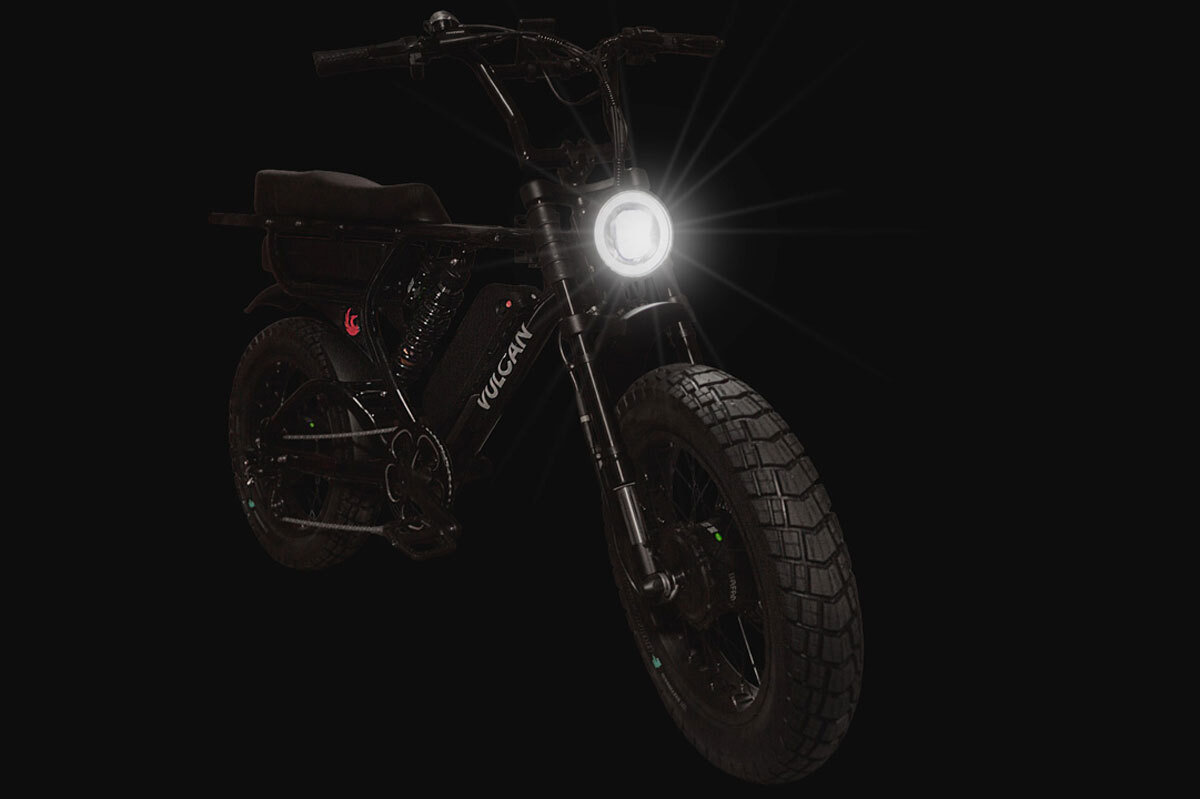

Lighting System: LED Super bright 3 stage headlight with daytime running feature

Display: Multi-colored LCD Display

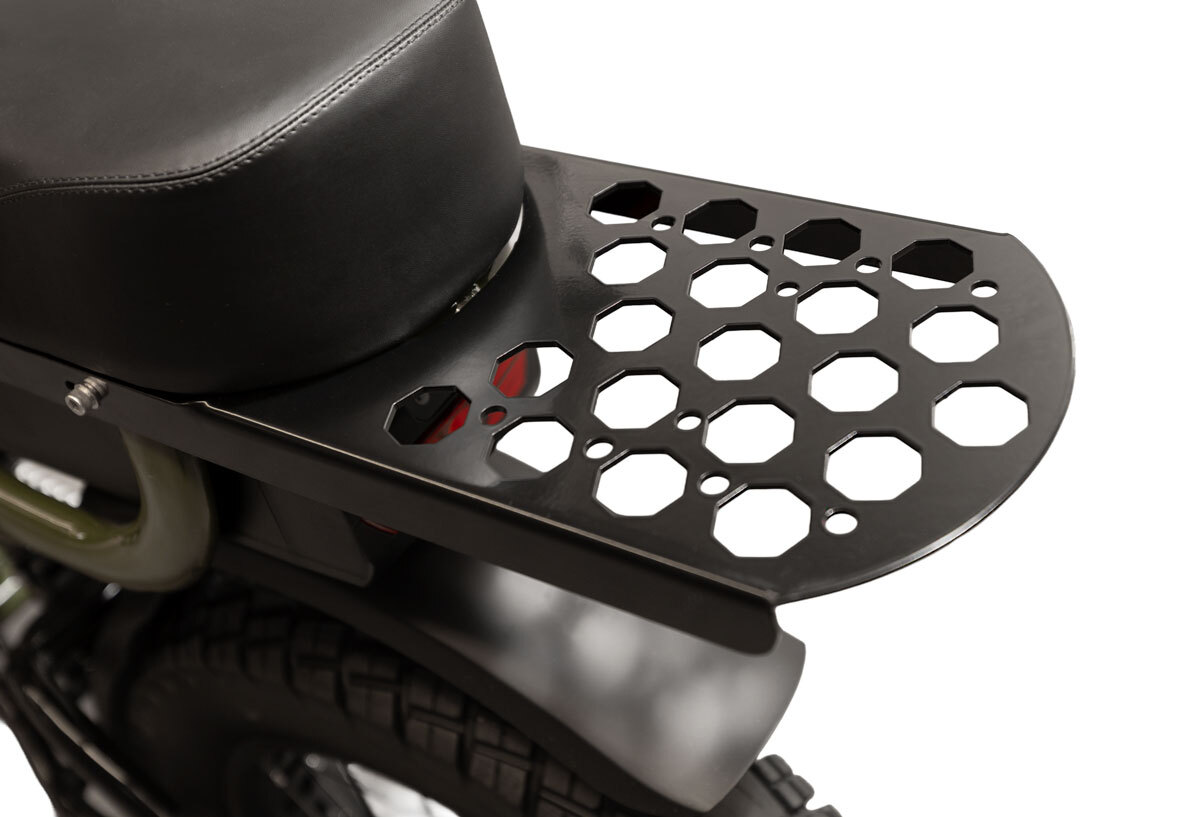

Rear Cargo Rack: Updated Hexagon rack

FRAME

+

-

Frame: Aluminum alloy 6061
Suspension: Full, rear DNM adjustable monoshock
Brakes: Tektro Dorado Hydraulic, Adjustable Reach
Fenders: Updated Front & Rear
Motor Inhibitors: Brake lever activated
Disc Rotor: 180mm
Tires: Vee Huntsman Puncture Resistant All-Terain
Inner Tubes: 20”x4”
Kickstand: Yes

Australian Features:

Controller Power

1560W Peak Power

Battery

52V 20AH Samsung Battery UL2271 Compliant

Speed

Restricted to 25 km/h

Torque

100 NM

Motor Rating

500W

2 Year Warranty

All inclusive

Weight Capacity

Up to 180 kgs

Certified

UL2271 & UL2849

Standard Inclusions:

• Throttle with isolator

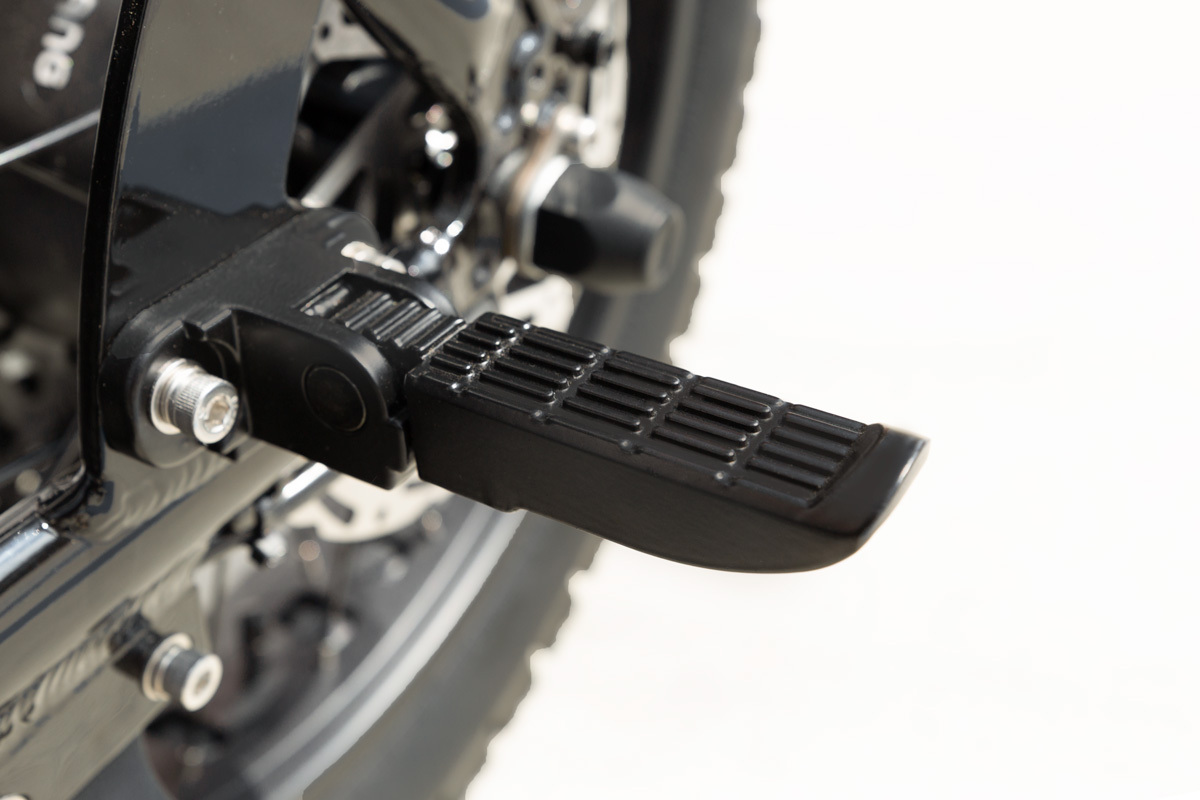

• Rear passenger footpegs
• Super bright 3 stage headlight with daytime running feature
• Rear cargo rack
• Vee rubber puncture resistant tyres
• Bright LCD colour display w. USB charging capability
• Rear adjustable suspension

All Fatboy Bikes models have a maximum continuous power of 250 watts at 20km/h, or 500 watts at 25km/h with a max load of 180 kgs. In the opinion of Fatboy Bikes, this is in line with EPAC legislation. Throttles are strictly for private property use and should be isolated when riding in public.

Before using this vehicle, check the applicable local laws relating to your intended use of the vehicle on roads and road related areas.

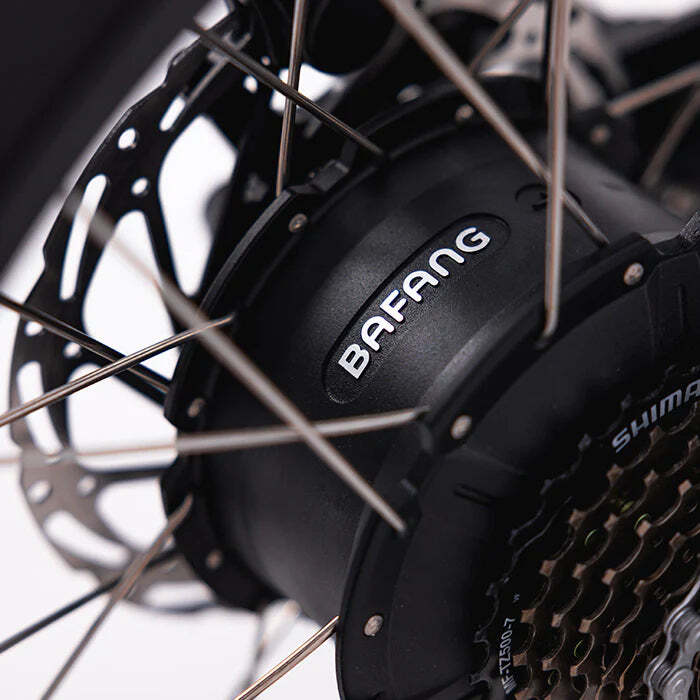

Class Leading Motor

Featuring a high torque Bafang hub drive motor means more power and capability for steep inclines, two riders or off road use of your ebike.

Samsung Battery

Safety tested Samsung 52V 20AH Lithium-ion Samsung battery featuring a sleep mode which protects your battery, removable and lockable with a built-in LED tail light for extra safety.
